Product Overview

Co-lab INDOOR SECURITY ROBOT

Co-Lab is an indoor robot with surveillance, data collection & advanced video analytics capabilities.

It navigates autonomously & safely around its environment via its extensive sensors array. Providing up to 8 hours of run-time with just 2 hours of charging & public announcements features, Co-Lab is designed to provide 24/7 safety & surveillance.

Equipped with lift integration, smart access-doors integration & site-maps sharing capabilities allows Co-Lab to travel autonomously & access various floors in a building.

Featuring a 2-metre telescopic camera positioned on an extendable boom arm gives Co-Lab a complete 360-degree visibility of its surroundings, capturing an extensive amount of information for comprehensive surveillance & analytics. In addition, its interactive screen allows users to access various directories & concierge functions.

Complete with an easy-to-use mission control interface, Co-Lab is your perfect surveillance partner & an essential member of your security team.

Key Features

Modular Design
For Easy Add-On
Options

Touch-Screen PAD for
Concierge/help desk/
visitor registration
Automated
Disturbance
Responses

SECURITY & SUVEILLANCE,
FACILITY INSPECTION

Storage
Compartment
PA System/
FCC Alert
Extendable
Telescopic 360°
Camera
Front view
Side view

WITH EXTENDED TELESCOPIC

Key Features

Front view
Side view

WITH EXTENDED TELESCOPIC

Technical Specifications

DESCRIPTIONPARAMETRES
Diameter710mm ± 10mm
HeightWithout Extended Telescopic : 1500mm (±10mm)
Without Extended Telescopic : 2000mm (± 10mm)
Weight80kg
LIDAR

Maximum Scan Radius
(On the surface with a 90% reflective rate)

25 metres
Ultrasonic Sensor 6 (Maximum Detecting Distance: 50cm)
Depth Camera3
Cliff Sensor3 (Minimum Detecting Depth: 5cm)
Pressure Bumper1
Mapping PerformanceMaximum Mapping Area : 500m x 500m
Map Definition : 5cm
Minimum Path Clearance1 metre
Speed0.3 – 0.7m/s
Software InterfaceSmart+
Working Hours≤ 7 hours*
Battery Capacity & Type24V 32AH (18650 Li-Ion)
Autonomous RechargingCharging Station
Input : 100 – 240 VAC (250W)
Output : 25.2V 6A-10A
Max Charging Time : 3 – 5 hours
Operating Environment0°c – 40°c
Network4G Enabled

*Subject to specifications

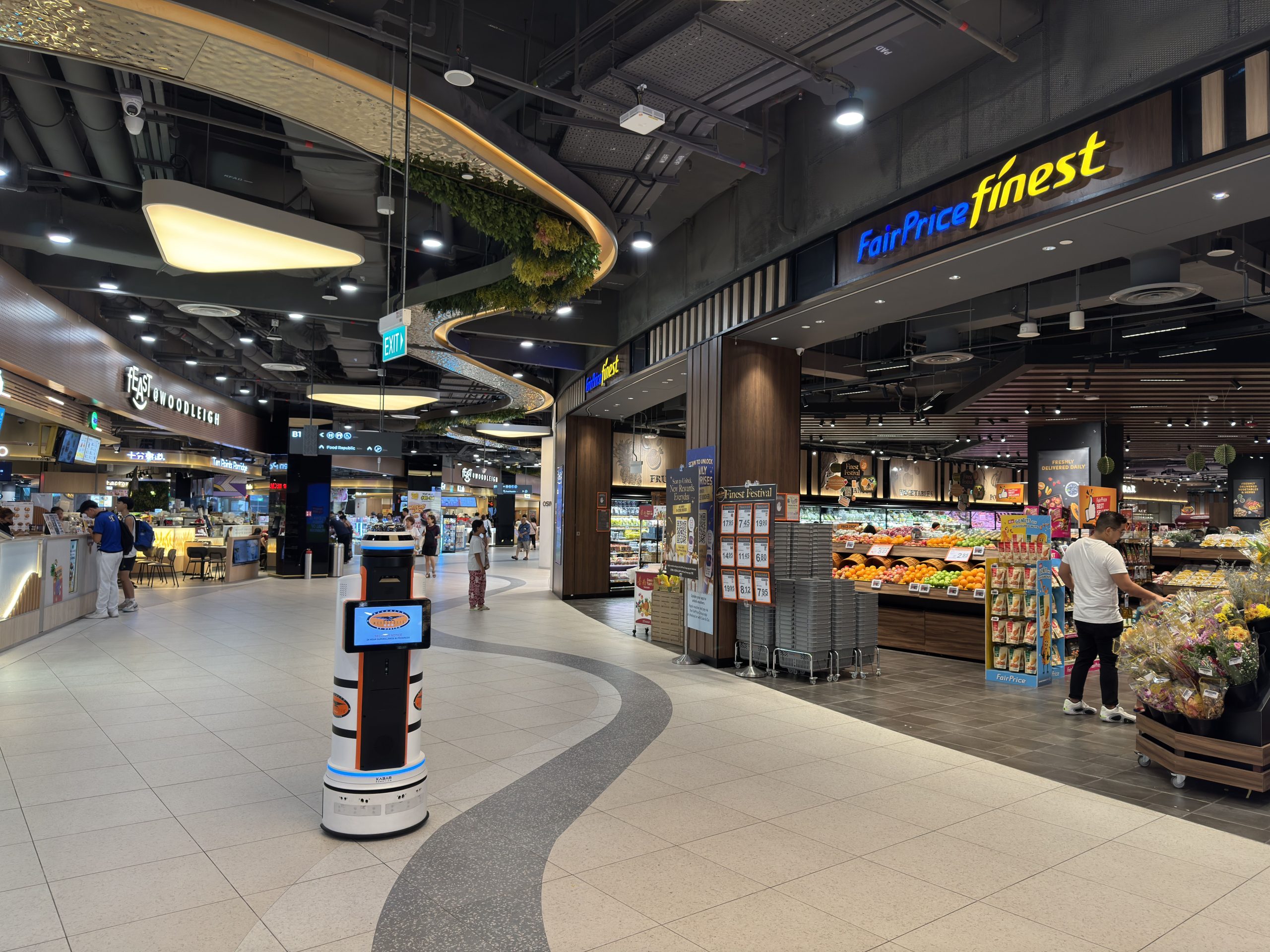

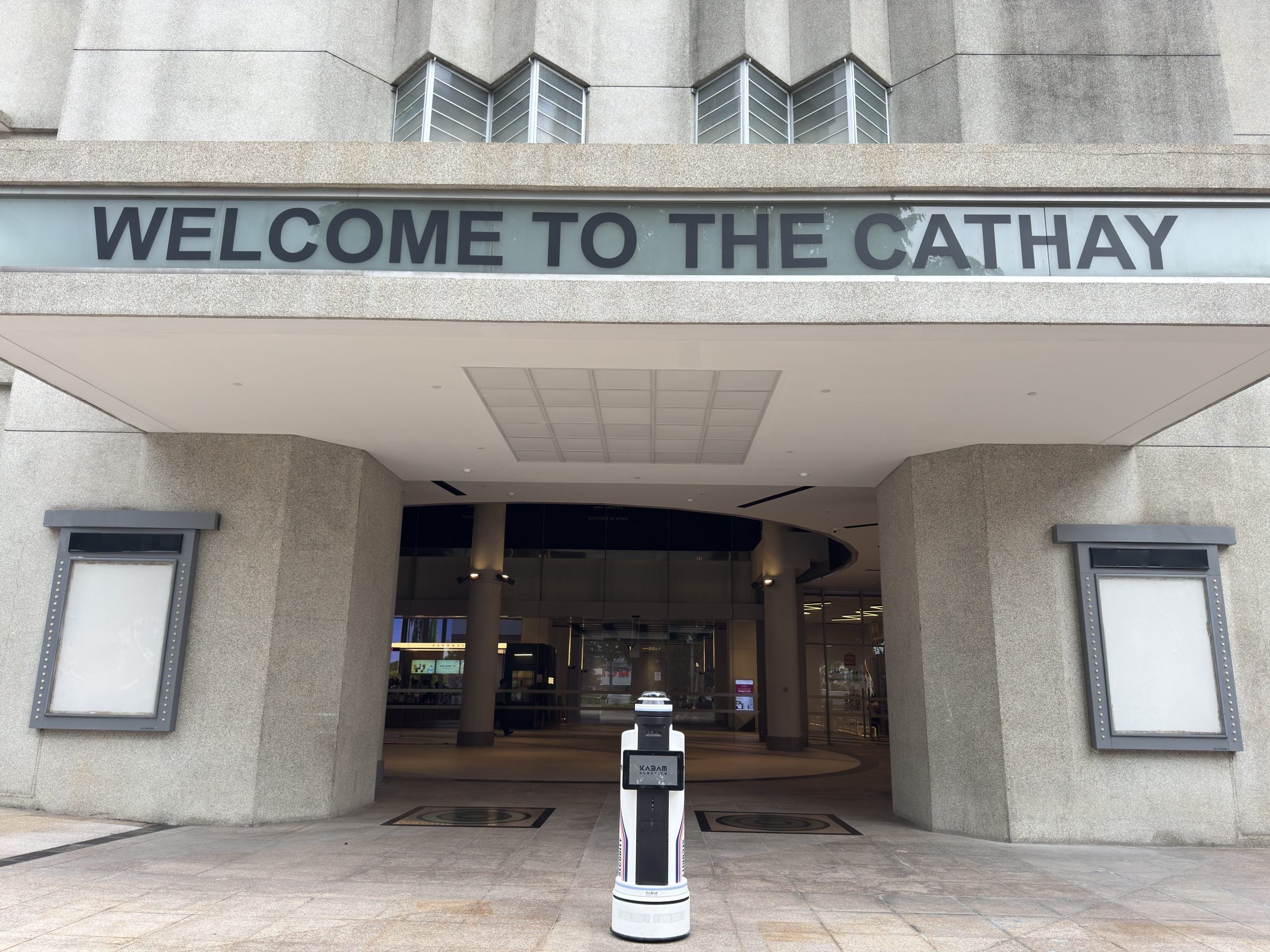

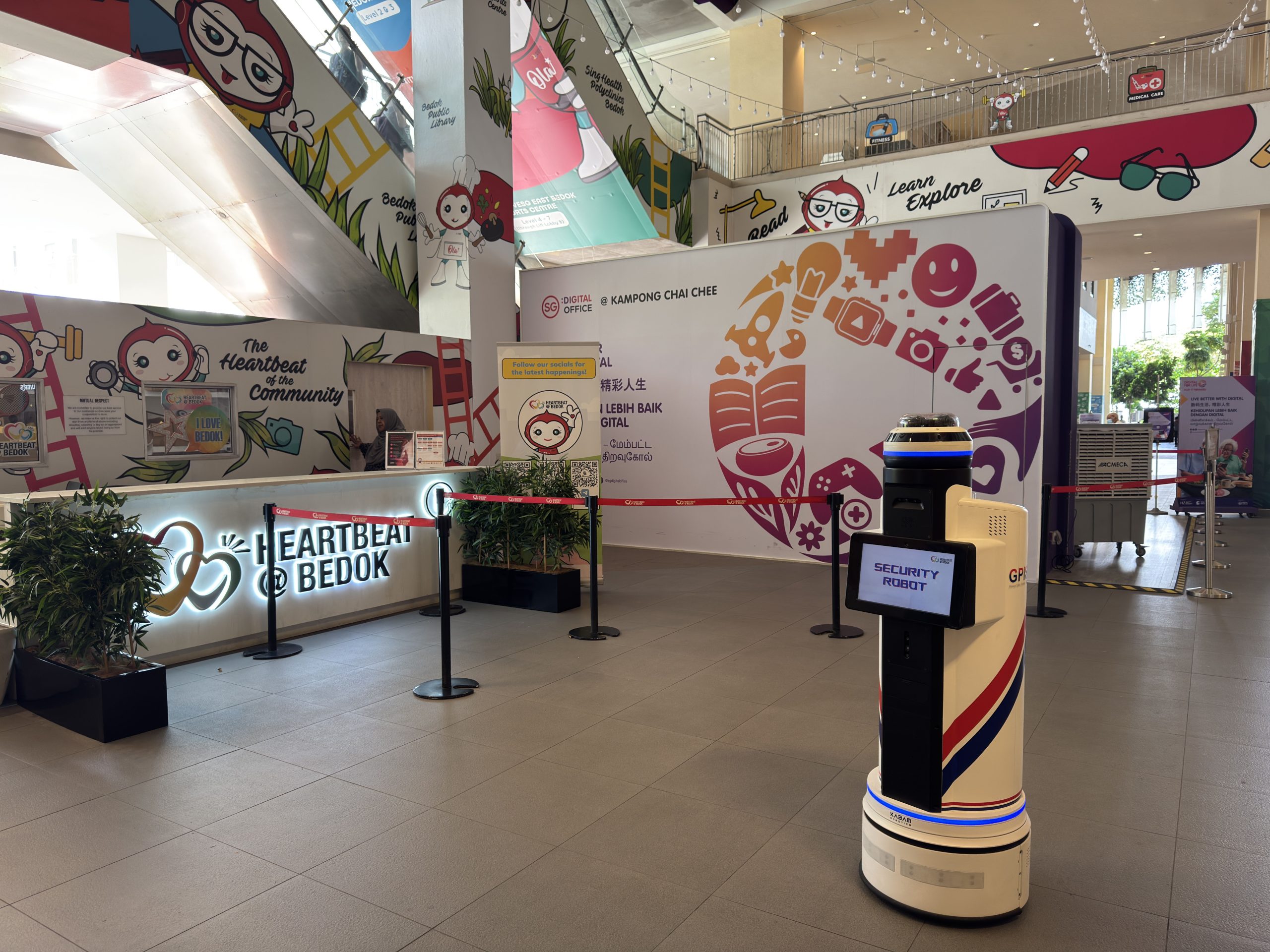

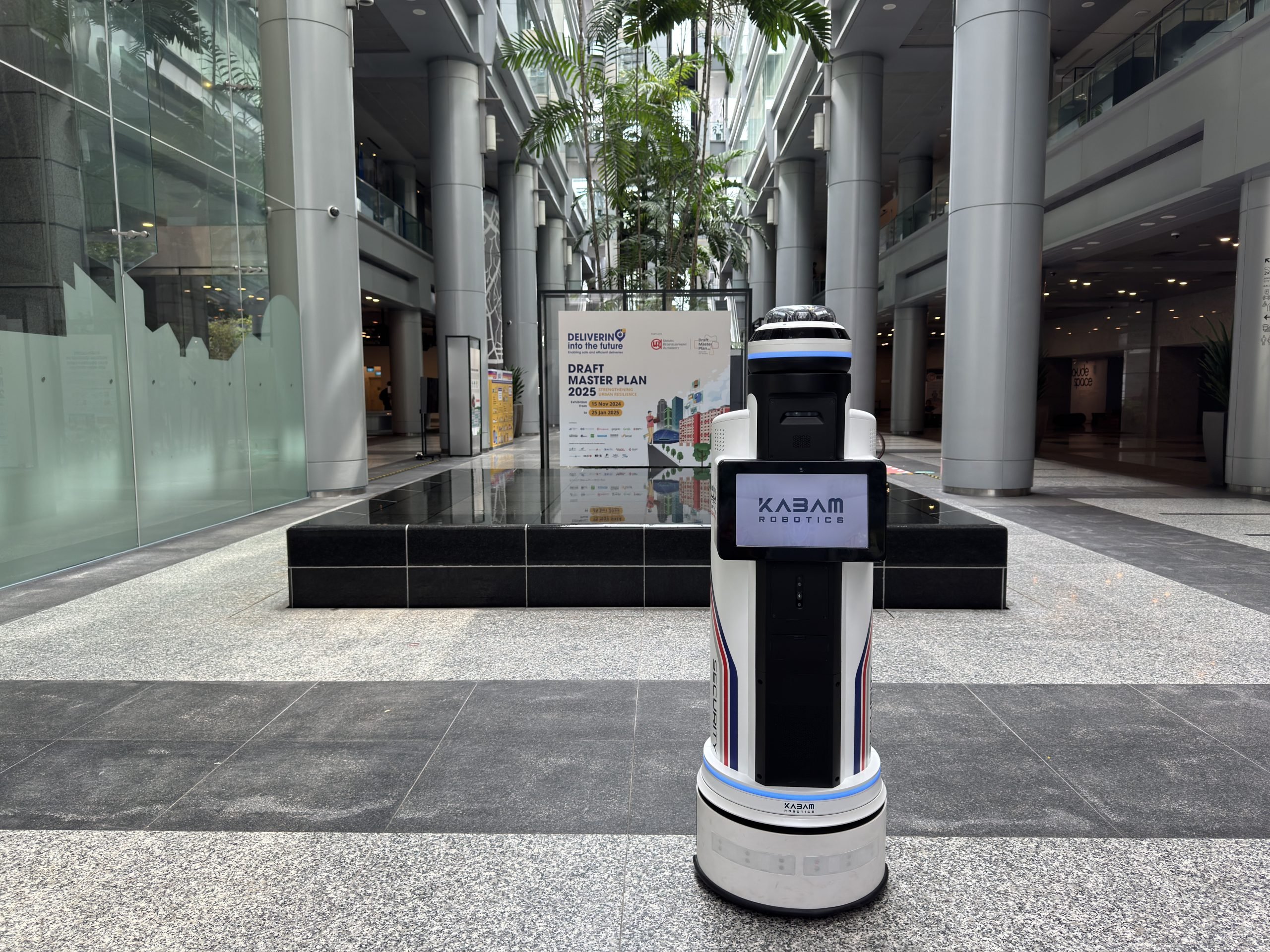

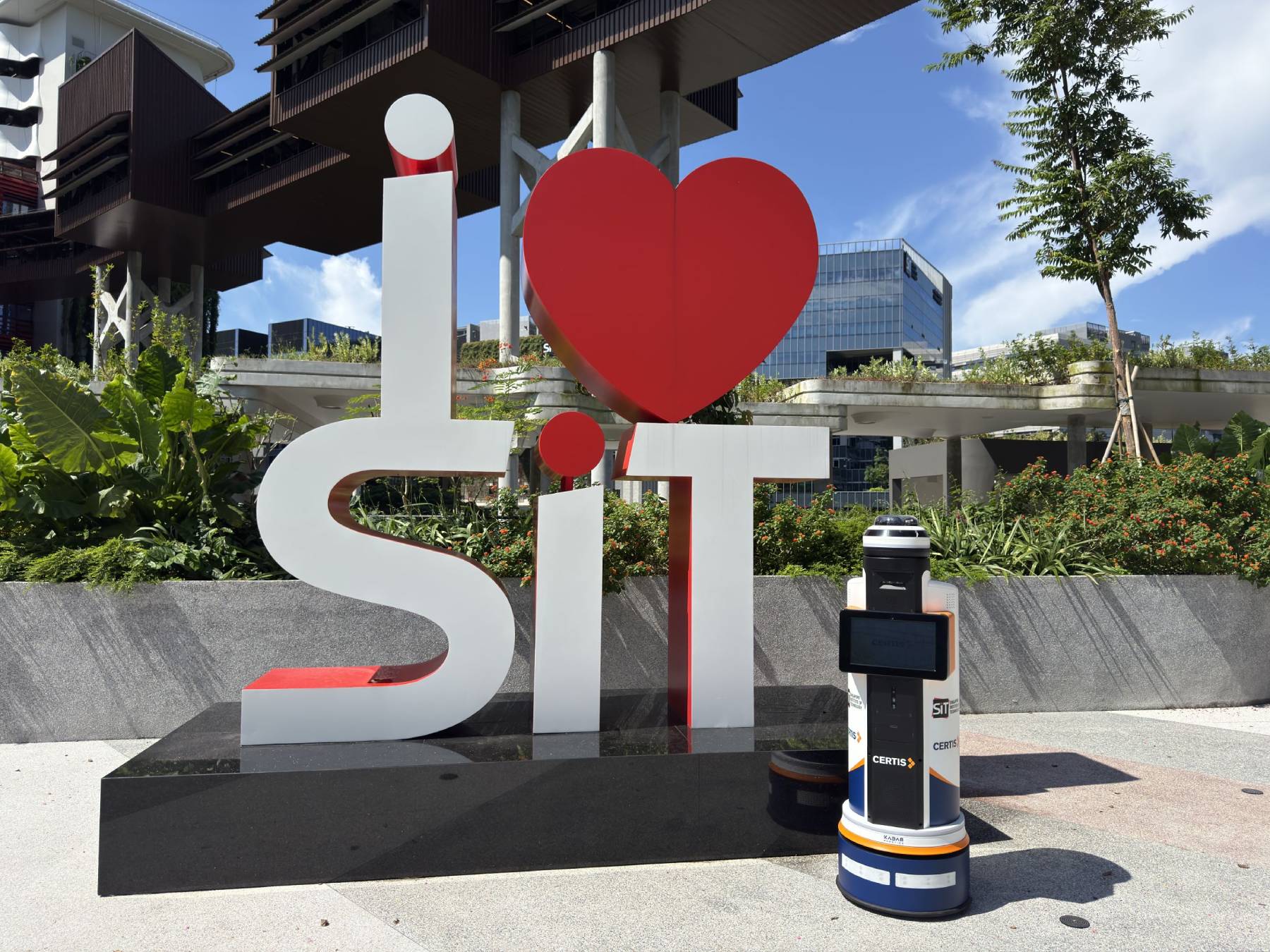

Applications Across Industries

FAQ

Does Co-Lab comes with 360-degree cameras?

Yes, Co-Lab comes with 360-degree view cameras. The cameras are mounted on a telescopic boom that can extend up to 2 meters, providing comprehensive visibility of its surroundings. This feature is particularly useful for surveillance and facility management tasks.

Can Co-Lab's 360-degree cameras stream the live video of all the views to a command center video wall?

Yes, Co-Lab’s 360-degree cameras can stream video to a command center video wall, providing a comprehensive view of the robot’s surroundings. This integration allows for seamless navigation and efficient security coverage of the entire building.

Can Co-Lab take the elevator to conduct its patrol to the lower and upper floors?

Yes, in a building environment, Co-Lab can be programmed to take the elevator to conduct patrols on both lower and upper levels. By integrating the elevator control system with Smart+ platform, Co-Lab can effectively move between different floors to perform its patrol duties. This integration allows for seamless navigation and efficient coverage of the entire building.

Does Co-Lab comes with storage compartment?

Yes. Co-Lab is equipped with a lockable storage compartment, adding a significant element of utility. Users can efficiently store essential items like a compact AED kit, safety-aid box, or a small fire extinguisher in this compartment. In times of emergencies near the incident area, these items can be readily accessed from the robot, enhancing overall safety measures.

Is Co-Lab able to charge itself without human intervention to recharge the battery?

Yes, Co-Lab comes with self-recharging capabilities, enabling it to autonomously return to its charging station, reducing the risk of running out of power in critical situations.

Can Co-Lab operate and navigate in the night and what is the lighting conditions can the robot navigate?

Co-Lab is designed to operate effectively in a variety of lighting conditions, including low-light environments. It is equipped with advanced sensors, such as LIDAR, ultrasonic sensors, and depth cameras, which allow it to navigate and perform surveillance tasks even in minimal lighting. However, for optimal performance, it is recommended to have at least ambient lighting to ensure the cameras and sensors can capture clear images and data. The exact minimum lighting conditions can vary depending on the specific environment and the tasks Co-Lab is performing.
