Halo

OUTDOOR SECURITY ROBOT

Halo is an outdoor mobile robot with surveillance, data collection and
advanced video analytics capabilities.

Product Overview

Halo OUTDOOR SECURITY ROBOT

Halo is an outdoor mobile robot with surveillance, data collection and advanced video analytics capabilities.

It operates autonomously and navigates accurately using the data provided about its environment by its extensive sensor array. Providing up to six hours of running time with just three hours of charging and public announcements features, Halo is designed to provide around-the-clock safety and surveillance.

Equipped with lift integration capabilities, Halo can travel autonomously and access various floors in a multi-storey building through lifts.

Halo has a robust all terrain capable drive system that allows it to traverse undulating and broken terrain. It has a weather-proof shell that enables it to operate in a wide range of weather conditions including rain, wind, and high heat environments.

Halo provides a complete 360-degree visibility of its surroundings, allowing it to capture an extensive amount of information for comprehensive surveillance and analytics. Halo is equipped with sirens and strobe lights to create greater visibility and surveillance presence.

Key Features

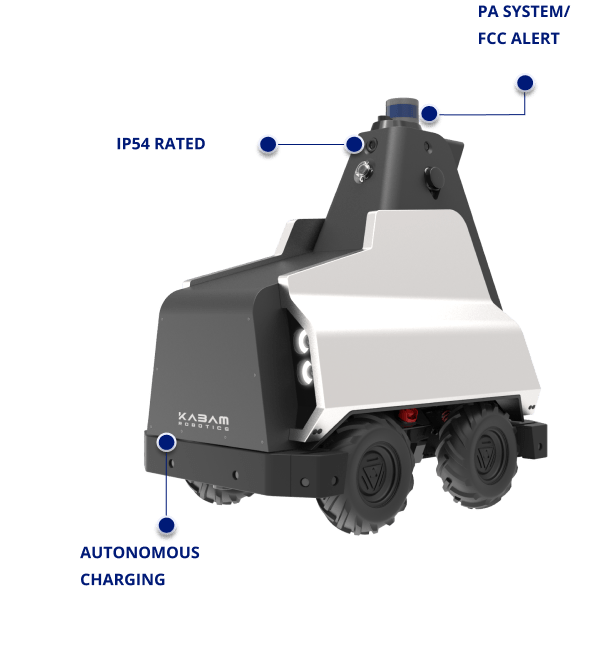

Modular Design For Easy Add-On Options (LCD/LED Display Screen, Camera Arrays)

SECURITY & SUVEILLANCE,
FACILITY INSPECTION

Front view

Automated
Disturbance
Responses

IP54 Rated
PA System/ FCC Alert
Autonomous Charging
Autonomous Navigation with Obstacle Detection
Front view
Side view

Key Features

Front view
Side view

Technical Specifications

DESCRIPTIONPARAMETRES
Dimension (L x W X H)1167mm x 760mm x 1280mm
Weight112kg
IP ProtectionIP54
Camera4x 5MP, 2.8mm focal length (360º visibility, low-light vision*)
1x front-facing camera
1x downward-facing camera
1x rear-facing camera
Speaker2 x 30 Watts (86 dB) 10cm fullrange
Drive4 Wheel Drive (Differential Steering)
Ground Clearance120mm
Climbing Ability< 15 degrees
Turning Radius0 (Robot is able to turn on a pivot)
Battery25V, 60AH
Operations Hour Per Full Charge4 – 5 hours**
Charging Time3 hours3 hours
Operation Environment-10°c - 45°c
RC Transmitter2.4G/ extreme distance 1km
SpeedUp to 1.5m/s
Operation Environment
Thermal Sensors (optional)Spectral Range: Longwave infrared, 8 µ to 14 µm
Effective Frame Rate: 8.7 Hz
Thermal Sensitivity: <50 mK (0.050º C)
Smoke Sensors (optional)Sensitivity: 0.08-0.2 db/m
Screen (optional)14" Android Tablet Computer (IP65)
Battery Upgrade (optional)25V, 90 or 120 AH

*0.0001Lux @ (F1.2, AGC ON), 0 Lux with IR

**Subject to specifications
